Balcony Solar Mounting System
Other：
- 10-year Quality Warranty
- 25 Years Service Life
- Structural Calculation Support
- Destructive Testing Support
- Sample Delivery Support

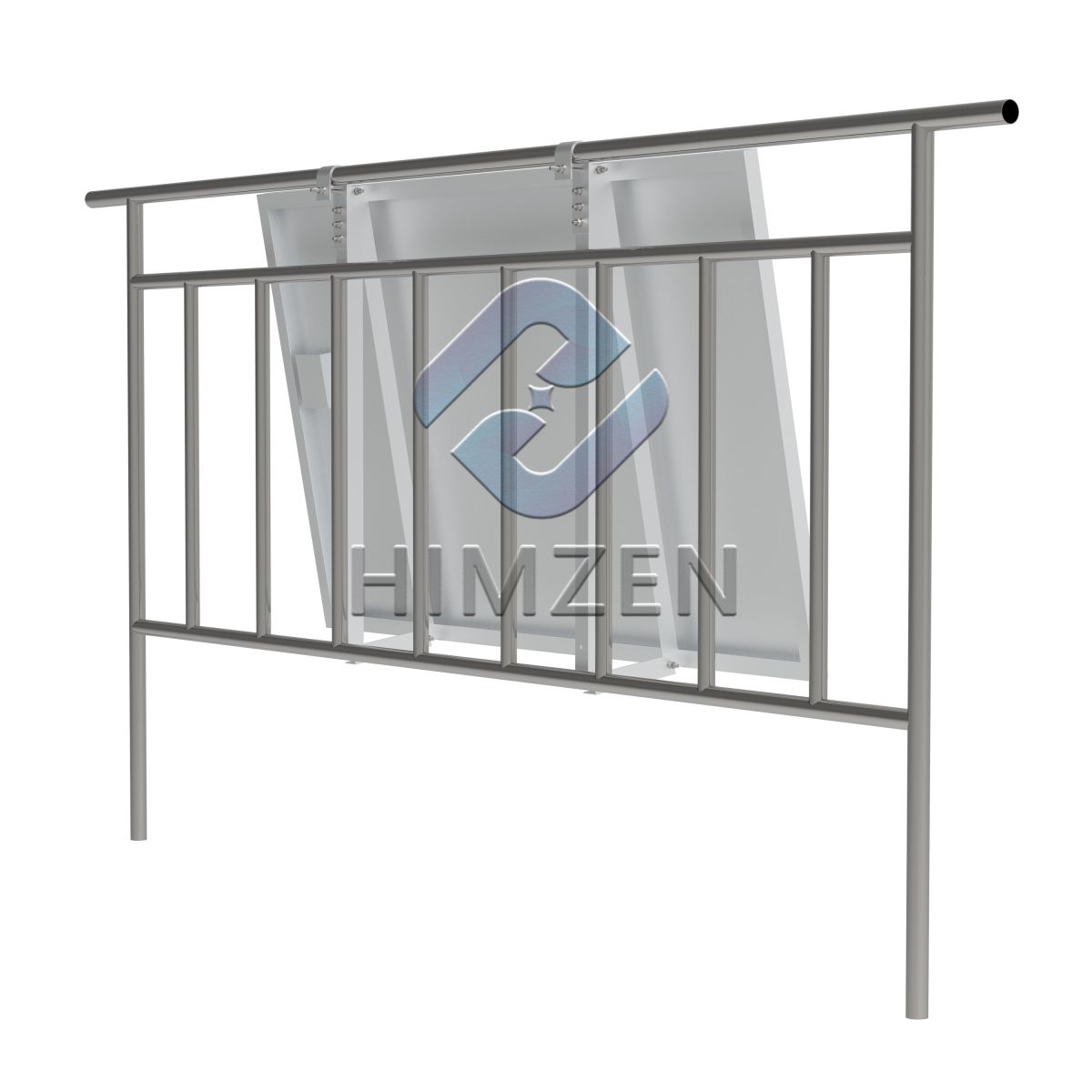

Product Application Examples
Features
Easy To Install
Fully pre-assembled design, it can be simply unfolded and fixed on the balcony for installation. The installation process is simple, fast and cost-effective, which greatly saves installation time and is very important for civil projects.
High Durability
It is composed of highly anti-corrosion aluminum alloy and sturdy and durable stainless steel. The use of different thicknesses of anodized film can ensure the strength and stability of the system in various harsh environments.
High Compatibility

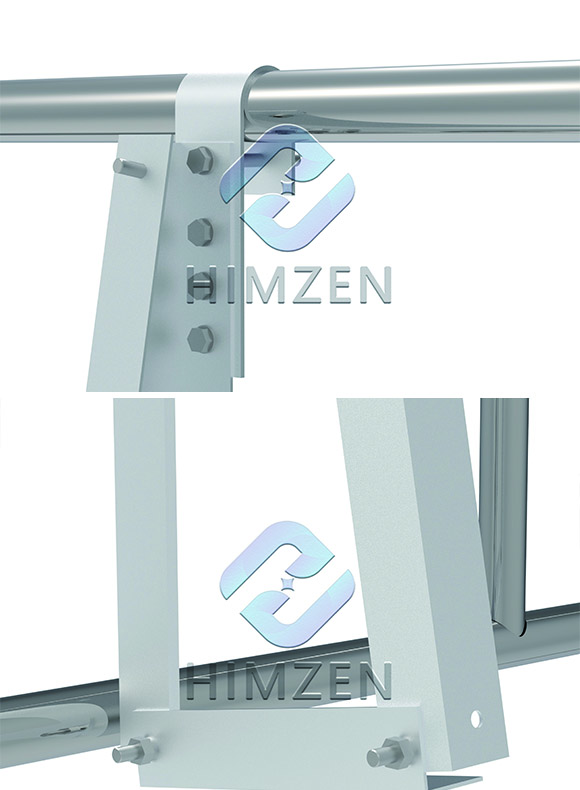

Widely adjustable, it can be flexibly installed on most common sized balcony and is compatible with metal poles and flat walls.
Technische Daten
| Type | Balcony |
| Foundation | Balcony |
| Installation Angle | ≥0° |
| Panel Framing | Framed Frameless |
| Panel Orientation | Horizontal Vertical |
| Design Standards | AS/NZS，GB5009-2012 |
| JIS C8955:2017 | |
| NSCP2010,KBC2016 | |
| EN1991,ASCE 7-10 | |
| Aluminum Design Manual | |
| Material Standards | JIS G3106-2008 |
| JIS B1054-1:2013 | |
| ISO 898-1:2013 | |
| GB5237-2008 | |
| Anti-corrosion standards | JIS H8641:2007,JIS H8601:1999 |
| ASTM B841-18,ASTM-A153 | |
| ASNZS 4680 | |
| ISO:9223-2012 | |
| Bracket Material | AL6005-T5 (surface anodized) |
| Fastener Material | stainless steel SUS304 SUS316 SUS410 |
| Bracket Color | Natural silver Can also be customized （black） |
